Handheld Mobile Terminals

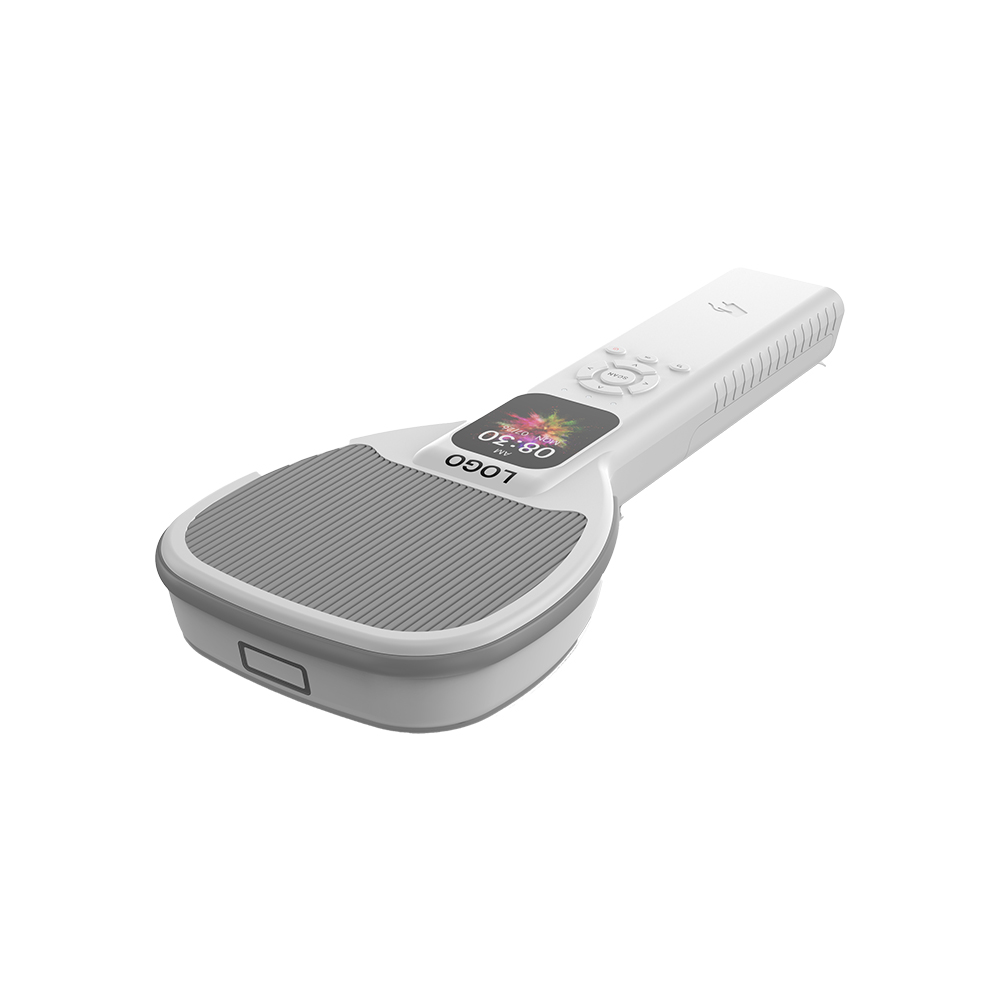

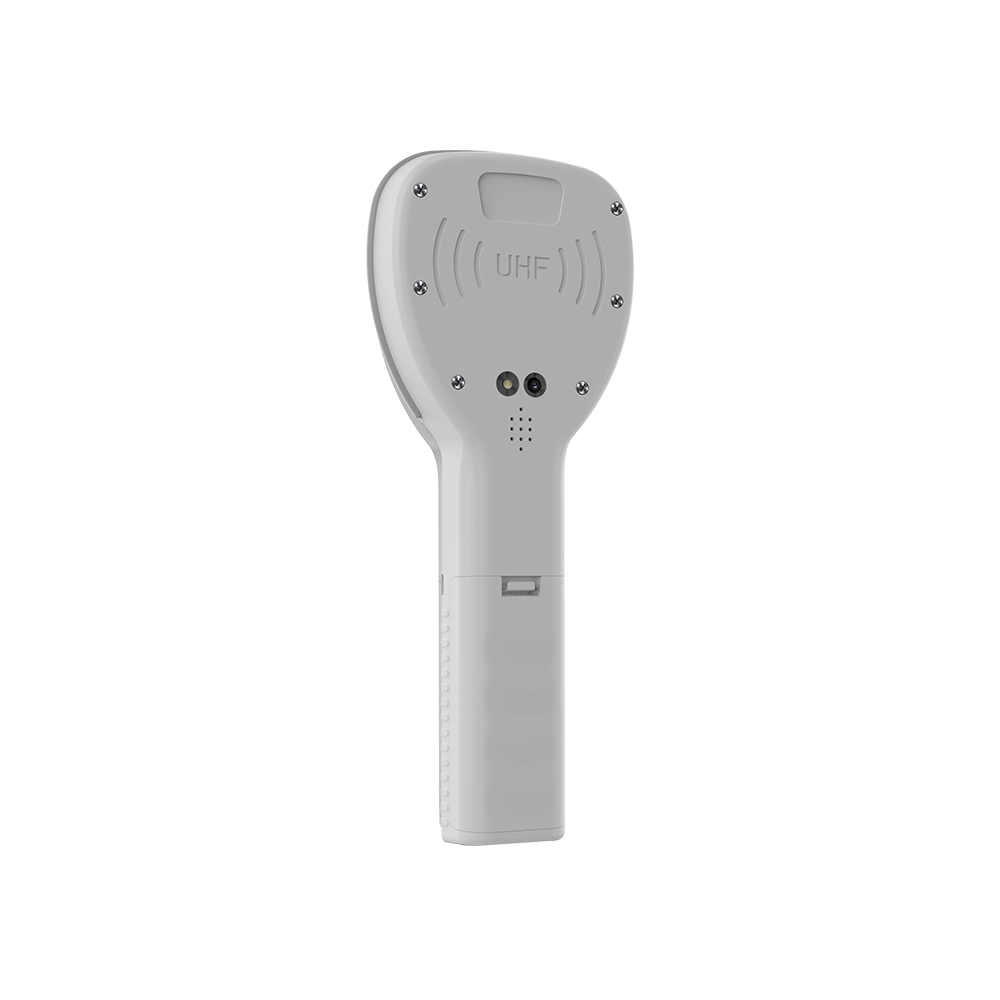

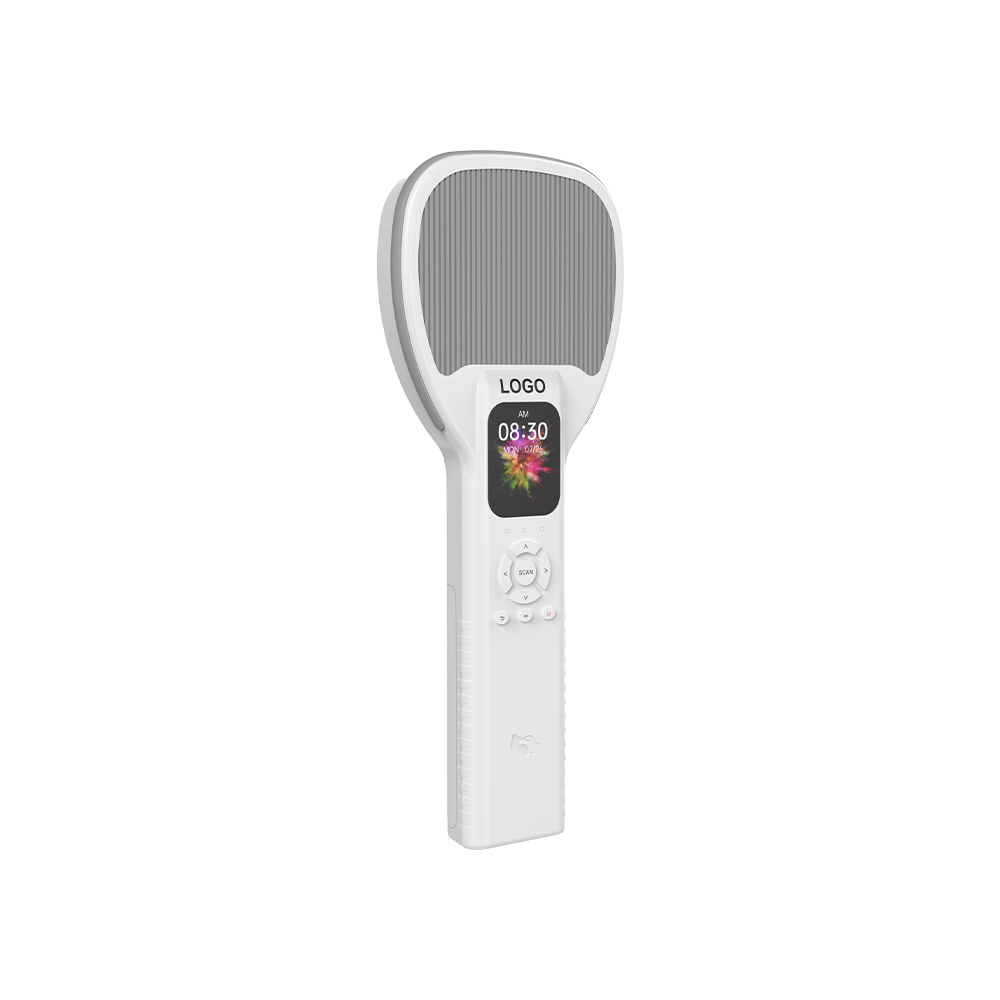

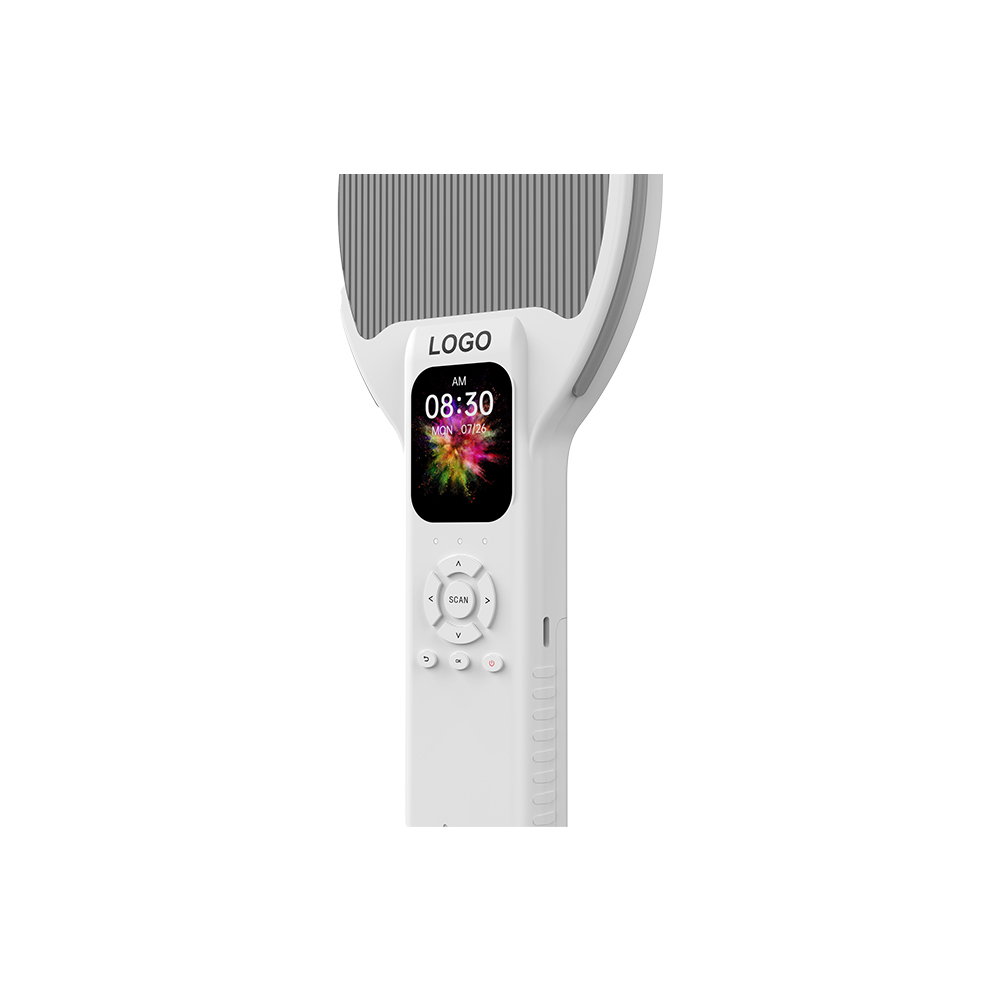

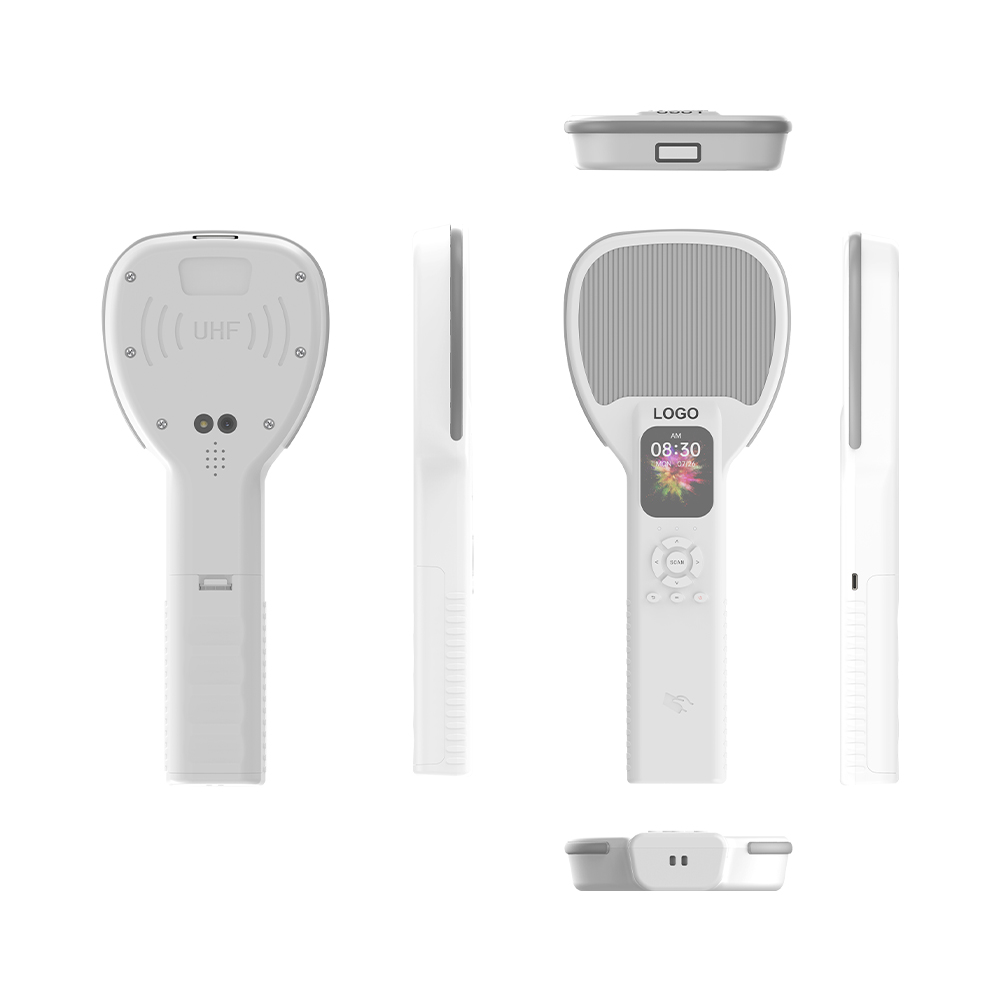

M1
Compact UHF RFID reader for rapid inventory, patrol inspection, and on-site asset verification.
2 inch AMOLED Qualcomm Octa-core processor UHF distance
Product details
Product details
Physical Parameter
| Size | 275.5mm * 51mm (104) * 30.3mm |
| Weight | <700g |
| Display Screen | 2 inch AMOLED, screen(410*502) |
| Touching Screen | Multi-touch screen |
| Battery Capacity | 7200mAh, 27.36W, detachable Charging time: 2-3 hours |
| Interface | Nano-SIM*2 Type-C, support OTG, support Power Delivery |
| Audio | Loudspeaker |
| Camera | Rear 20 MP, autofocus camera with flash |
| Notify | Tricolor breathing light*1, indicator light*2 |
| Main Key | Navigation Key (UP/DOWN/LEFT/RIGHT/Scan Key) Return Key, OK, Power Key |
| Sensor (Optional) | Gravity sensor/Gyroscope sensor/ Magnetic sensor |
Performance parameter
Accessories
Technical Specification
| CPU | QualcommSM6225 Octa-core 2.4Ghz |
| OS | Android 13.0 |
| RAM+ROM | 4+64GB |
| Extra Memory | Expansible through TF, support 256GB |
Standard Accessories
Power adapter *1 USB data line *1 Battery *1 Manual *1
Communication Transmission
| WLAN | Dual-band WiFi (2.4GHz/5Ghz) Support IEEE 802.11 a/b/g/n/ac/ax ready |
| WWAN | EAU Version (Europe/The Middle East/Africa/Korea/ Thailand/Australia) 2G: GSM: GSM850/EGSM900/PCS1900/DCS1800 3G: WCDMA: B1/B2/B5/B8 4G:FDD-LTE: B1/B3/B5/B7/B8/B20/B28; TDD-LTE: B38/B40/B41(2496-2690MHz) |
| Bluetooth | BT5.1 |
| GNSS | GPS/GLONASS/BeiDou |
UHF Function
| Module | Impinj E710 |
| Antenna | Circularly polarized antenna |
| Frequency | FCC(America)902-928MHz;ETSI(Europe)865-868MHz;SRRC -MII(China)840-845MHz 920-925MHz. |
| Protocol | EPC Class 1 Gen 2 (ISO 18000-6C) |
| Power | 2W (33dBm) |
| Reading Distance | ≤10m, 4dbi antenna |
| Rates | ≥900tags/s |
Optional Function
| 2D Scanning Engine | Scanning Accuracy: ≥3mil |
| NFC | Frequency: 13.56MHz Protocol standard: ISO14443A/B,ISO15693, NFC Label standard: M1(S50 S70) CPU NFC tags Read-write distance: 2-3cm |
Environmental Parameter
| Operating Temperature | -20°C-50°C |
| Storage Temperature | -40°C-70°C |
| Environment Humidity | 5%RH-95%RH(No condensation) |
| Drop specification | Compliant with IEC standards, capable of withstanding 1000 cycles of 0.5-meter six-sided tumble tests |
| Electrostatic protection</td± 15KV air discharge ± 8KV contact discharge |
